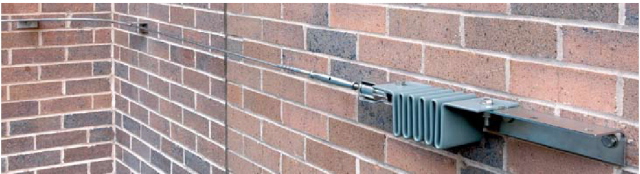

KEELINE HORIZONTAL LIFELINE SYSTEMS 水平安全繫穩系統
•Conforms to EN795 Class C, ANSI Z359,
CSA Z259, AS/NZS 1891
• CE Approved to the PPE Directive
• Tested on ‘as built’ roofs in advance of EN795
• Efficient in-line absorber negates the need for
expensive ’fall over’ style posts at every
bracket position
• Maximum span in between supports 15m
• Accommodates corners and varying building
shapes
• Open style, low profile top fix posts to suit modern roof constructions including metal profile,
standing seam and membrane roofs
• Comprehensive range of fixing options
• Horizontal or Overhead applications
• Traveller enables users to detach or re-attach
at any point of the system
• Maximum for 3 users
• Modular design for easier specification
• Gr.316 Stainless Steel 8mm dia wire and
bracket
• Available with non-penetrative WIREANKA
option.
•符合EN795 Class C， ANSI Z359，CSA Z259 AS/NZS 1891
•CE認證的個人防護設備
•最大跨度為十五米之間
•可建築的形狀和不同的角落
•開放式，扁平的頂部固定職位，以適應現代建築，包括金屬型材屋頂，站在屋頂和膜縫
•多元化的固定選項
•水平或架空應用
•Mini Traveller 穿梭扣能夠於任何位置跟水平安全繫穩系統分離或重新連接
•最多大3人一同使用
•模塊化設計，便於規範
•Gr.316 8毫米直徑的不銹鋼絲和支架
•可選非穿透性 WIREANKA 錨固裝置。
|

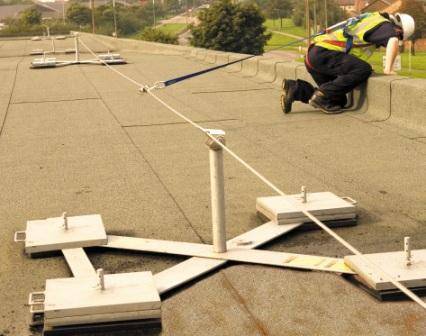

Wireanka® is a system of deadweight anchor devices designed to support Class ‘C’ horizontal, flexible safety lines to EN 795. It is intended for use on flat roofs, in temporary situations, or where it is preferable that penetration of the roof surface be avoided. Wireanka® is the first deadweight anchor to have been tested and approved for Fall Arrest use with Class ‘C’ systems to EN 795. For fall arrest purposes no more than one user may be attached to the system at any one time. Special configurations (at extra cost) allow for additional users. For restraint use, up to three users may be attached at any one time. To be classified as restraint, the position of the Wireanka® and the length of the lanyard must ensure it is not possible to approach within 500mm of a roof edge or other opening.
Wireanka® 是一個錨固裝置系統;設計載重量為支撐的水平安全繫穩裝置 ，符合EN 795 Class C。 它是為平屋頂上使用，在暫時的情況，或使用於避免穿透屋頂的表面的情況。
Wireanka® 是第一個重量錨固裝置經過 EN 795 Class C 安全測試，並批准使用錨固裝置系統。 特殊配置（需額外費用）允許其他用戶。最多可供三3人一同使用。 Wireanka® 的位置和掛繩的長度必須保證它是不可能接近500毫米範圍內的屋頂邊緣或其他開口。
|
|
|
|
